Z3 Regulator

Z3 Zirconium Regulator

ATOMIC AQUATICS SIGNATURE FEATURES

Divers on a budget can experience virtually the same easy, natural breathing and corrosion-resistance as the entire Atomic regulator line. The performance is delivered from patented Atomic exclusives including the Jet Seat piston and AFC. The economy is achieved from exclusive use of Zirconium-plated Brass materials.

ALL BLACK PATENTED COMFORT SWIVEL

When you turn your head to look at something interesting, you’ll look great doing it with the uniquely all-black Atomic Comfort Swivel. This exclusive Atomic design allows 30° rotational movement without hose pulling, binding or kinking. The Z3 version is precision-machined Brass with black PVD coating. (US Patent No. 7,188,869)

PATENTED AUTOMATIC FLOW CONTROL

The Venturi effect inside a second stage makes it breathe easy, and the Atomic AFC eliminates the manual adjustment normally needed to regulate Venturi effect as you dive deeper. No dials to turn or buttons to push. A Rapid Adjustment Knob is included for special situations like surf entry or octo use. (US Patent No. 5,678,541)

Jet Seat Piston

The Atomic Jet Seat system has no sharp edges that can damage the seat over time, like most competitor’s first stages. Instead, Atomic employs a conical seat and blunt-end piston. Our valve seats are precision machined from an extremely strong aerospace specification seat material. This design combination is the most reliable seat system in the industry and enables the seat to go 2-years or 300 dives without service. Diving performance is superior at even low tank pressure.

THE SPECS

LIGHTWEIGHT AND PERFECT FOR TRAVEL.

The Z3 packs a lot of performance into a 2.6 pound package (yoke version).

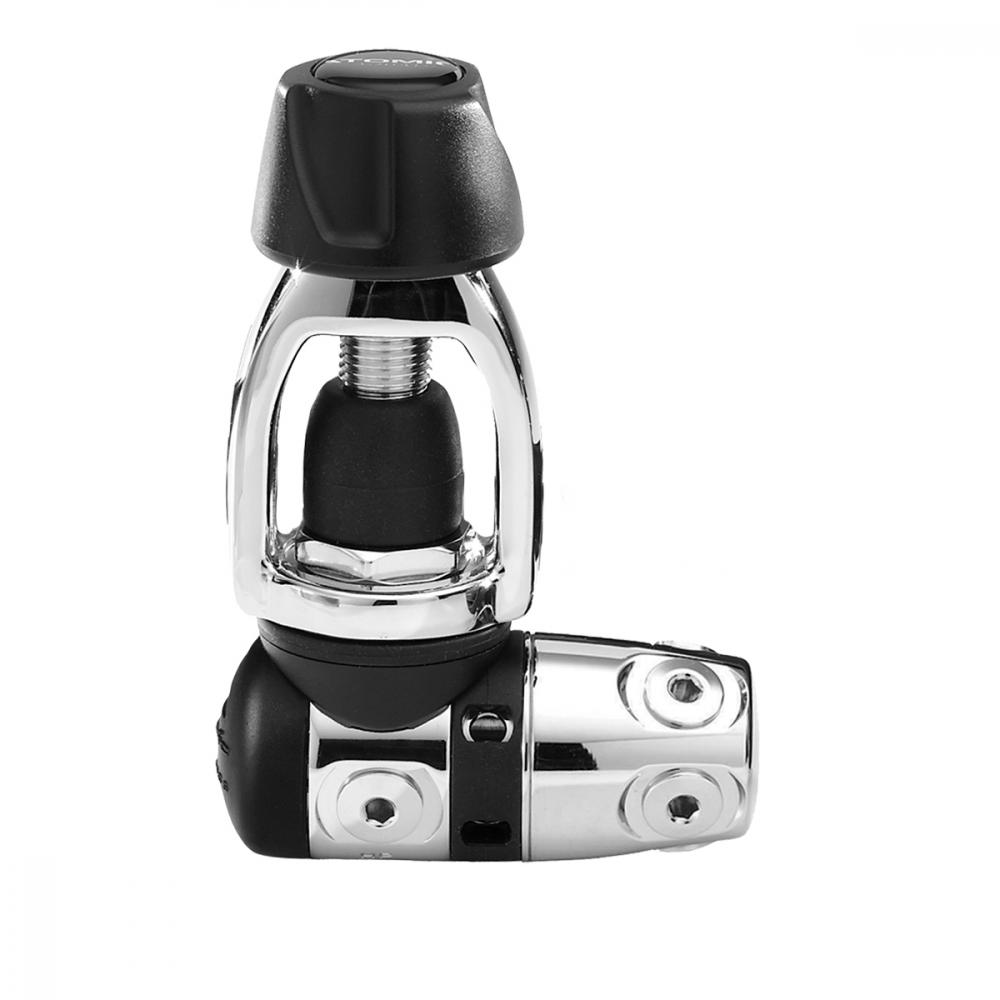

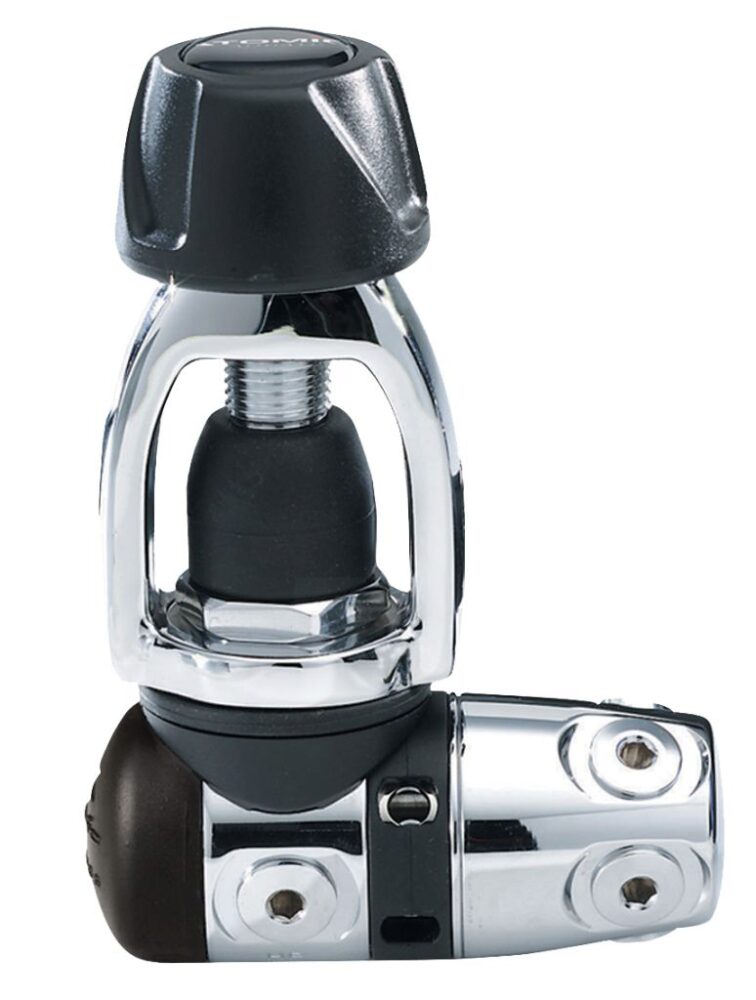

Z3 FIRST STAGE FEATURES

• Chrome-plated Brass and 316 Stainless Steel
• Atomic exclusive balanced Jet Seat high-flow piston.
• Optional factory-sealed to prevent outside contamination from silt and sand.
• Nitrox ready – approved for non-dedicated EAN use with mixtures up to 40%.
• Ports: 2 HP fixed / 7 LP on fixed cap.

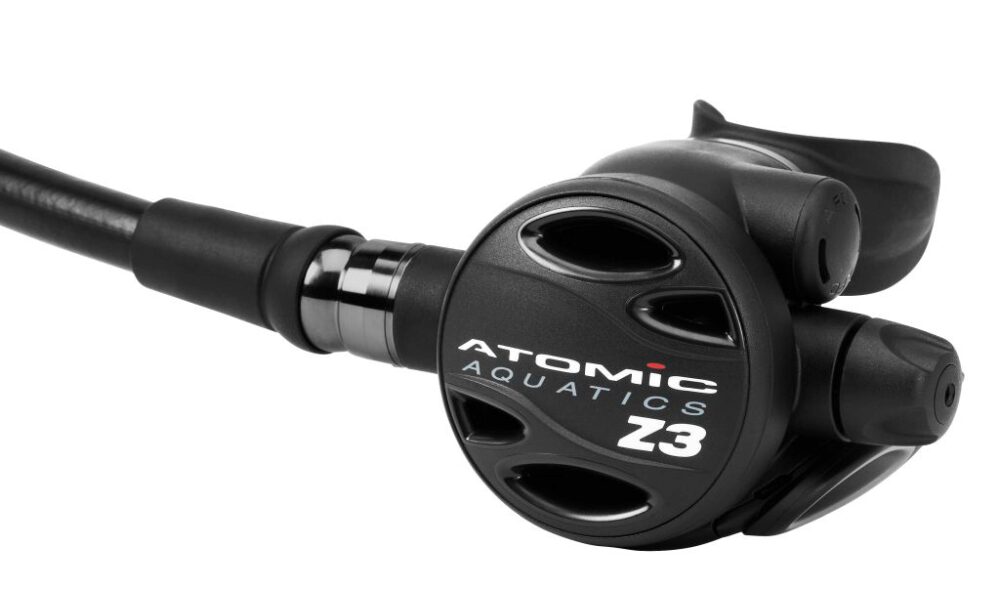

Z3 SECOND STAGE FEATURES

• Precision-machined Brass with Zirconium plating and Titanium components.
• Pneumatically-balanced poppet, high-flow case and lever design for easy breathing at all depths and tank pressures.
• Patented Atomic AFC – Automatic Flow Control.
• Soft overmolded Rapid Adjustment Knob for manual detuning in special situations such as surf entries or octo use.
• Patented Atomic Titanium Seat Saving Dynamic Orifice maintains crisp like-new factory tuning and prevents damage during storage.
• Z3 hose features patented Brass Atomic Comfort Swivel with Black PVD coating.
• Dual material second stage cover enables entire front to be used for purge.
• Elliptical exhaust valve dramatically reduces exhalation effort at depth.
• Dual silicone comfort fit mouthpiece with tear-resistant bite tabs – both comfortable and durable.
• Z3 optional color kit available.
•

SERVICE AND WARRANTY

2-YEAR / 300-DIVE SERVICE INTERVAL

LIMITED LIFETIME WARRANTY

Metal parts are warranted against corrosion for life. Period. The Atomic warranty is NOT contingent on proof of service. And even the recommended service interval of 2 years or 300 dives gives you a lot of dive time before taking your regulator in for a check-up.
