ST1 Regulator

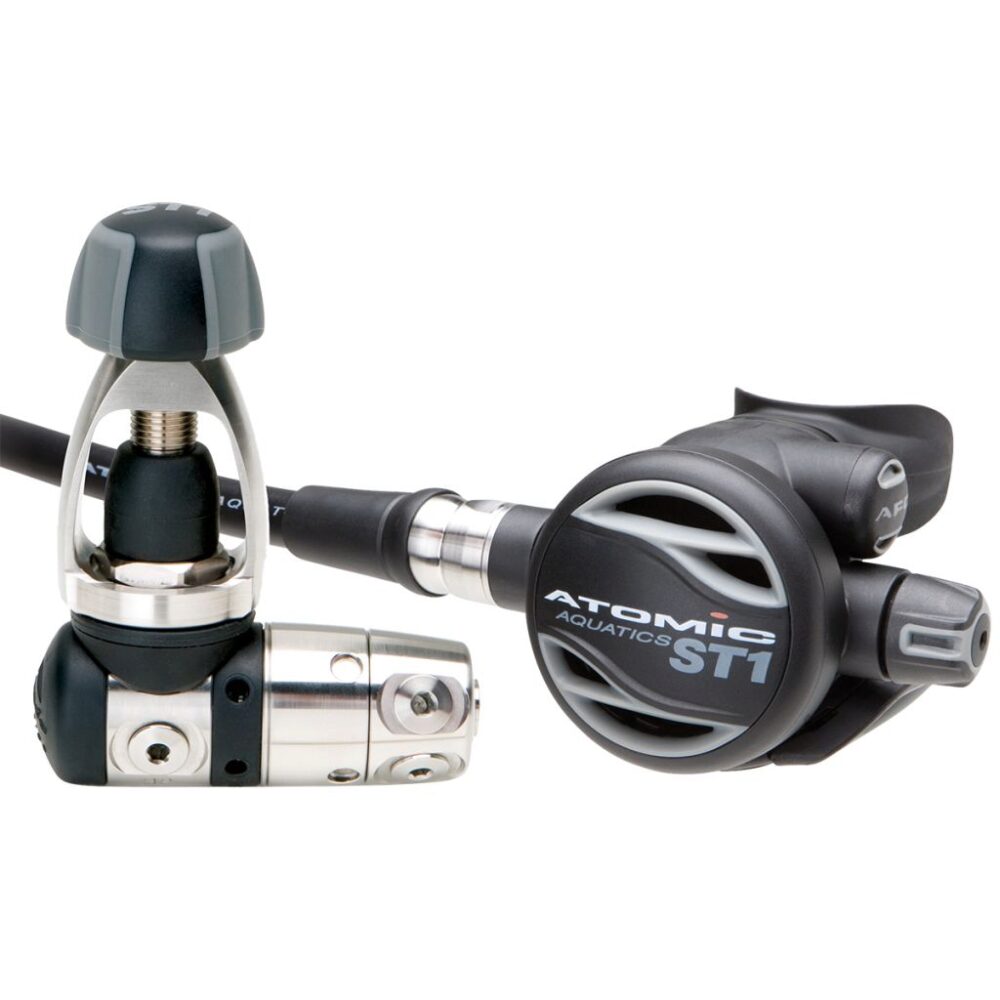

ST1 Stainless Steel & Titanium Regulator

EASY AIR BELOW. CLEAN AIR TOPSIDE.

At Atomic, it’s all about the metals. The 316 Stainless Steel used in the ST1 has twice the strength of brass with the durability of Titanium. It delivers virtually the same corrosion resistance as Titanium at a lower price. Environmental experts have classified Stainless Steel as the Green metal of the future because of its strength, ability to resist corrosion and ability to be recycled. The Atomic ST1 is designed to breathe effortlessly at atmospheres below the surface, while helping preserve the atmosphere above.

TITANIUM SECOND STAGE COMPONENTS

While the first stage is a beautiful, bright turned machine finish that will last a lifetime, the ST1 is corrosion-resistant inside and out. The same Titanium second stage components used in the T3 are used in the ST1. Easy breathing is delivered by the patented Titanium Seat Saving Dynamic Orifice and balanced poppet, case and lever design. The ST1 is Nitrox-ready up to 40%.

PATENTED STAINLESS STEEL COMFORT SWIVEL

The ST1 second stage offers the same renowned Atomic designs as the T3, including the patented AFC Automatic Flow Control with Rapid Adjustment Knob. A Stainless Steel Comfort Swivel hose allows 30°effortless range of motion without pulling or binding. (US Patent No. 7,188,869)

A BREATH OF FRESH AIR

Environmentally conscious topside natural breathing at depth

The ST1 is another industry first from Atomic Aquatics. The first stage is beautifully machined from a special grade 316 Stainless Steel that is twice the strength of brass with corrosion-resistance approaching Titanium. The use of Stainless Steel means we are doing our part for clean air when divers are out of the water. The legendary Atomic design means divers also breathe easy at depth.

Jet Seat Piston

The Atomic Jet Seat system has no sharp edges that can damage the seat over time, like most competitor’s first stages. Instead, Atomic employs a conical seat and blunt-end piston. Our valve seats are precision machined from an extremely strong aerospace specification seat material. This design combination is the most reliable seat system in the industry and enables the seat to go 2-years or 300 dives without service. Diving performance is superior at even low tank pressure.

Patented Automatic Flow Control

The venturi effect inside a second stage makes it breathe easy, and the Atomic AFC eliminates the manual adjustment normally needed to regulate venturi effect as you dive deeper. A computer-designed airfoil inside the mouthpiece is connected to a pressure-sensing diaphragm, allowing the airfoil to change position with response to depth. The AFC is the reason Atomic regulators breathe with a comfortable natural feeling at any depth. (US Patent #5,678,541)

SPECS

WEIGHT

All this Stainless Steel durability weighs just 2.3 pounds (yoke version), making the ST1 an excellent travel companion.

ST1 FIRST STAGE FEATURES

• Beautifully machined from a special Atomic grade solid 316 SS.
• Atomic exclusive balanced Jet Seat high-flow piston.
• Freeze-protected and factory-sealed to prevent outside contamination from silt and sand.
• Nitrox ready – approved for non-dedicated EAN use with mixtures up to 40%.
• Ports: 2 HP fixed / 5 LP on swivel cap

ST1 SECOND STAGE FEATURES

• Pneumatically-balanced poppet, high-flow case and lever design for easy breathing at all depths and tank pressures.
• Patented Atomic AFC – Automatic Flow Control.
• Soft overmolded Rapid Adjustment Knob for manual detuning in special situations such as surf entries or octo use.
• Patented Atomic Titanium Seat Saving Dynamic Orifice maintains crisp like-new factory tuning and prevents damage during storage.
• Hose features patented Stainless Steel Atomic Comfort Swivel with Black PVD coating.
• Dual material second stage cover enables entire front to be used for purge.
• Elliptical exhaust valve dramatically reduces exhalation effort at depth.
• Dual silicone comfort fit mouthpiece with tear-resistant bite tabs – both comfortable and durable.
• Optional ST1 color kit lets you express your style.

SERVICE AND WARRANTY

2-YEAR / 300-DIVE SERVICE INTERVAL

LIMITED LIFETIME WARRANTY

How long would it take you to dive 300 dives? You don’t even need to think about servicing the ST1 until then. Metal parts are warranted against corrosion for life. Period. The warranty is NOT contingent on proof of service.

ST1 Regulator Limited Lifetime Warranty

All metal parts are warranted against corrosion for life. Period.
